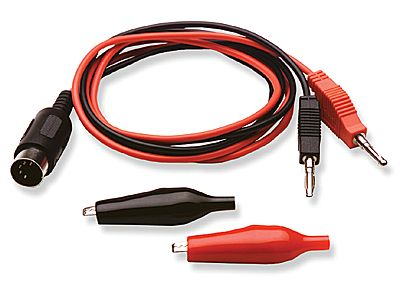

Technical Hint - Connecting the Pasco voltage sensor

  1. Plug the Pasco Science Workshop 500 into the wall using the included DC adapter.

  2. Connect the serial cable to the Pasco Science Workshop 500.

  3. Connect the serial cable to the serial port on the computer.

  4. Connect the voltage sensor to the Analog A input on the Science Workshop 500.
