Technical Hint - Connecting the Pasco force sensor

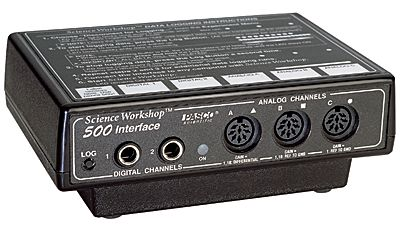

  1. Plug the Pasco Science Workshop 500 into the wall using the included DC adapter.

  2. Connect the serial cable to the Pasco Science Workshop 500.

  3. Connect the serial cable to the serial port on the computer.

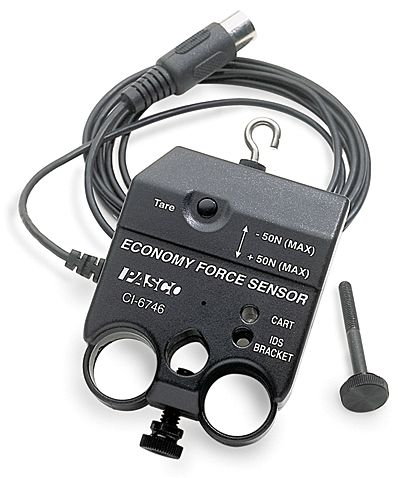

  4. Connect the force sensor to the Analog A input on the Science Workshop 500.
